Product Overview

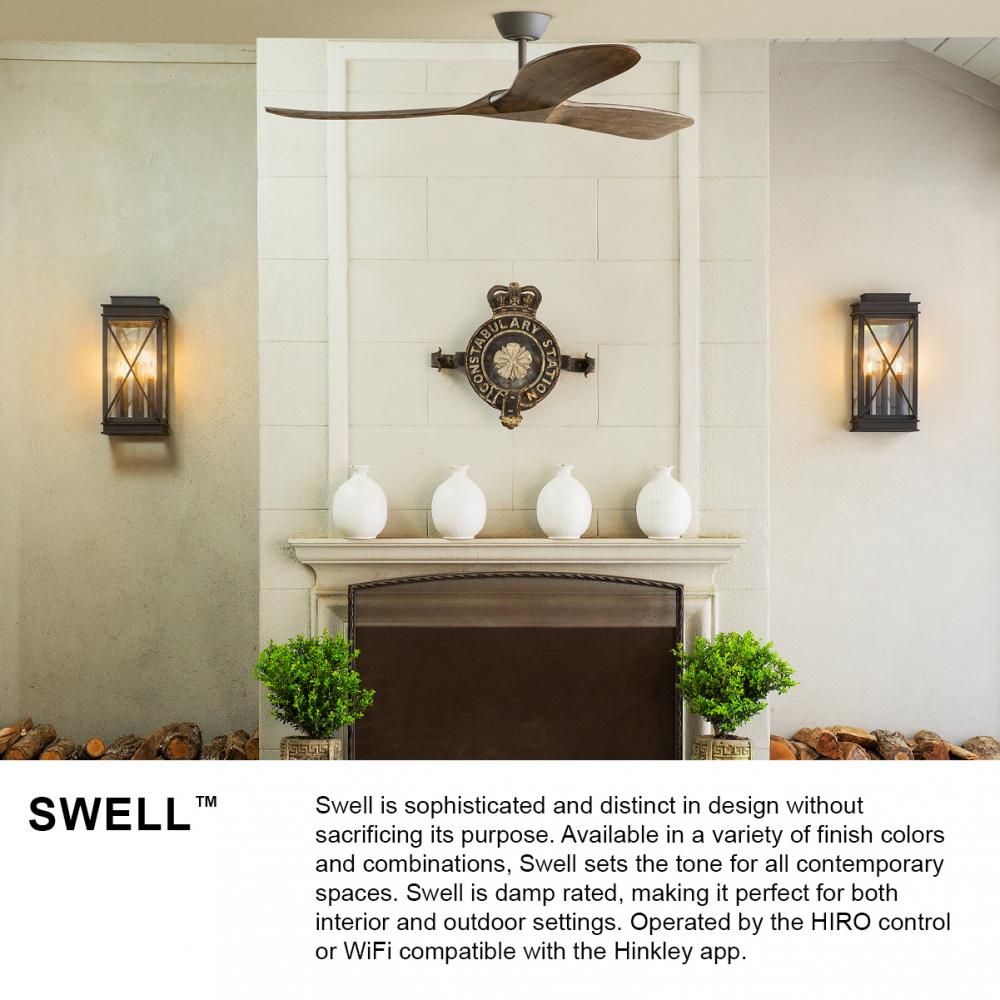

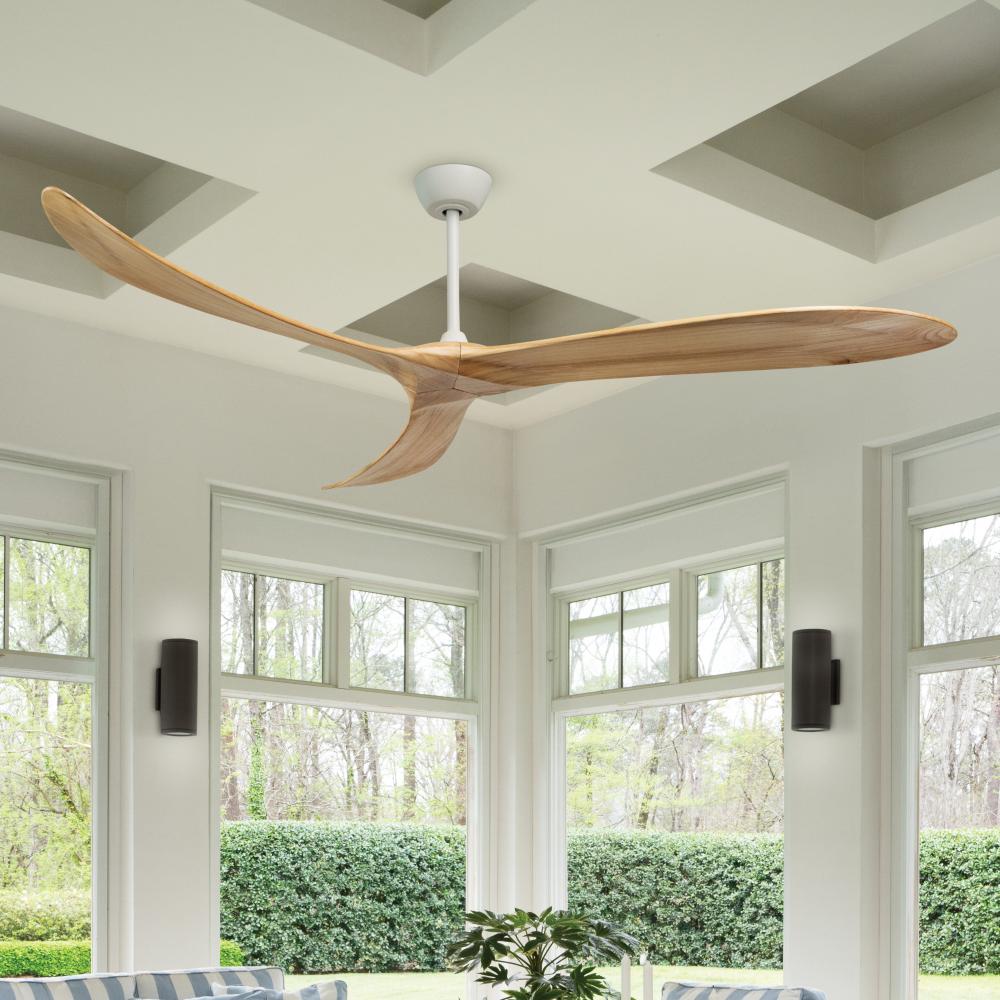

Swell is sophisticated and distinct in design without sacrificing its purpose. Available in a variety of finish colors and combinations, Swell sets the tone for all contemporary spaces. Swell is damp rated, making it perfect for both interior and outdoor settings. Operated by the HIRO control or WiFi compatible with the Hinkley app.

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

White

Style:

Modern

Refinement Options

Category:

Fan

Finish:

Matte White

Style:

Modern

Family:

Swell

Voltage:

120 V

Air Flow Efficiency:

10955

Amperage:

0.5

Blade Finish:

Natural

Blade Pitch:

14

Blade Span:

80

Blades Included:

Yes

Canopy:

6 Dia. x 2.5 D

Introduction Date:

06/01/2023

Light Kit Included:

No

Material:

Steel

Motor Type:

DC

Ship Carton Height:

11.42

Ship Carton Length:

42.91

Ship Carton Width:

12.6

Ship Weight:

20.29

Vendor Ship Method:

Parcel

Weight:

17.42

Airflow Avg:

8554

AMPS Avg:

0.3

Avg Airflow Efficiency:

433

Avg Energy Use Watts:

20

Blade Material:

Wood

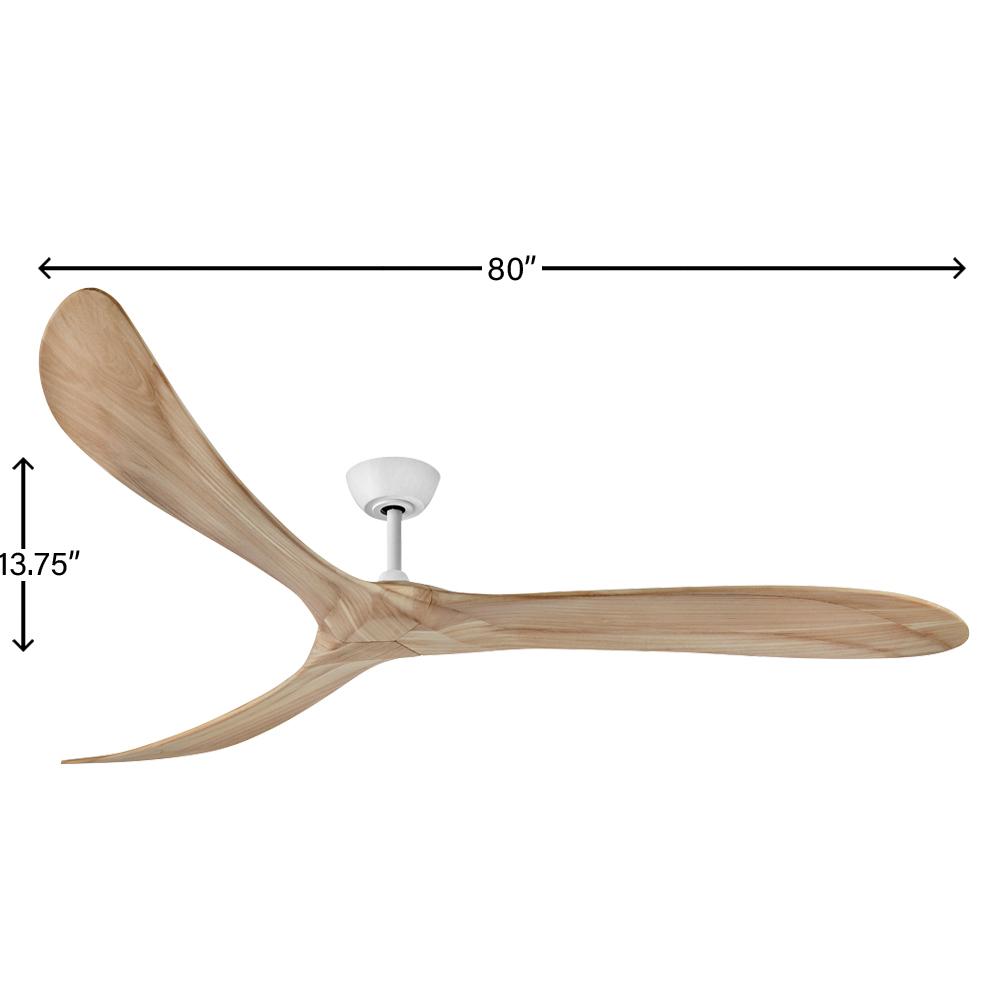

Blade Sweep:

80

Blade To Ceiling Height:

13.75

Bulb Included:

No

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

Taiwan

Dual Mount:

No

Efficiency High:

276

Energy Cost Avg:

6

Energy Cost High:

11

Energy Use High:

39.7

Fan Control:

Yes

Flush Mount Fan:

No

Install Sloped Ceiling:

Yes

Light Kit Adaptable:

Yes

Location Rating:

Damp

Motor Fan Speed:

6

Motor Name:

130 X 16

Number of Blades:

3

Operating Frequency:

60

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

74

RPMS High:

102

Safety Rating:

ETL Approved

Single Power Switch:

Yes

Slope Degree:

20

Stand By Power:

0.2

Title 24:

No

WIFI Control Included:

Yes

Blades, controls, switches, capacitors and hardware carry a 1-year warranty

Bold silhouette with dramatic details creates a modern statement

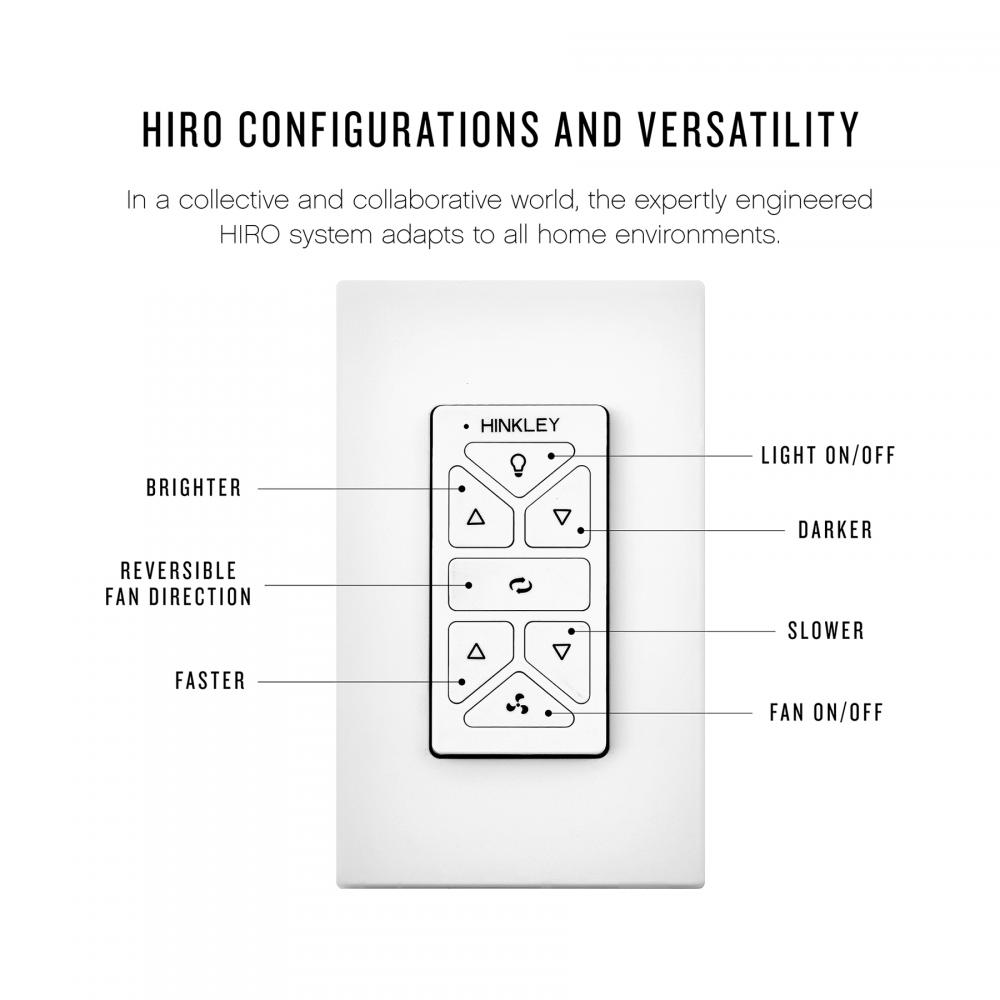

Fan Control included, 6 Spd HIRO:R

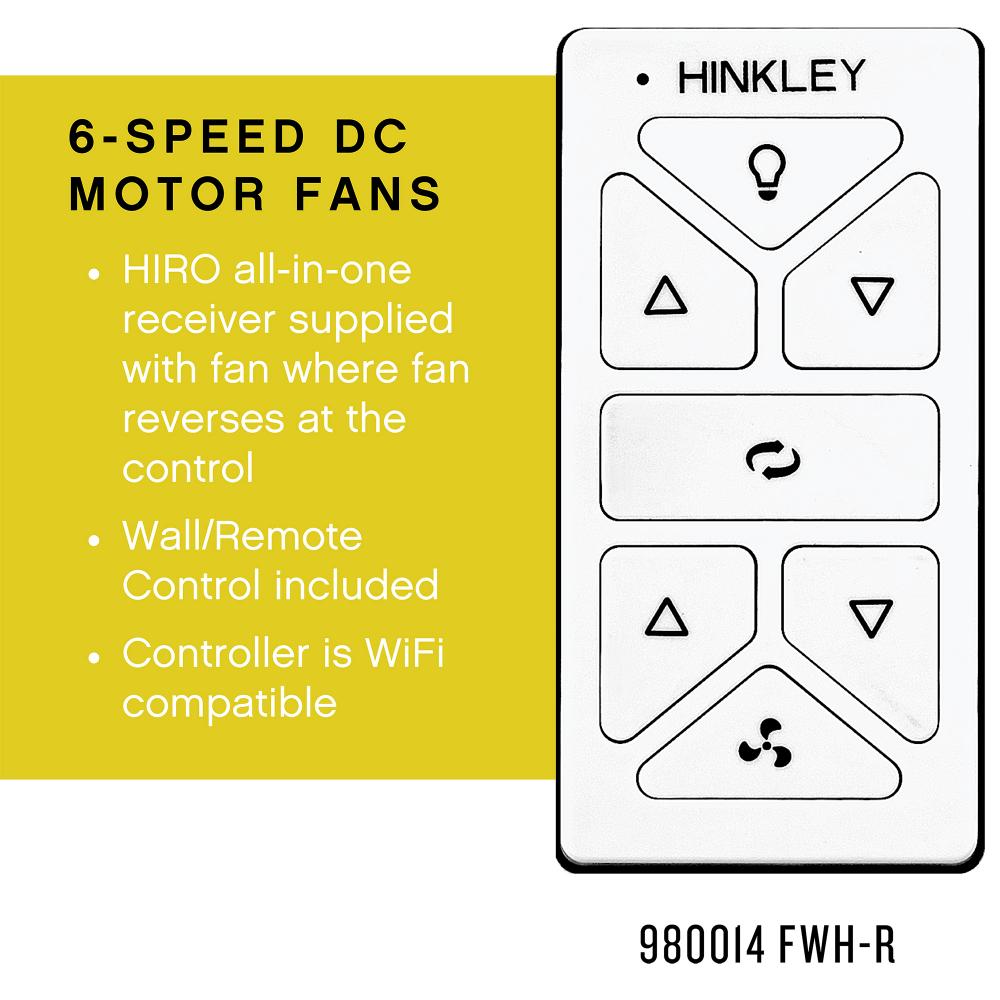

Fan Control included, HIRO Control - 6 Speed Reversing

FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling

FAN: DC Motor

Fans should be installed at a minimum of 7 feet from the floor

For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.

Motor carries a lifetime warranty

Powered by a highly efficient and quiet DC motor

Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.

This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

This item may be hung on a sloped ceiling

WiFi compatible with included fan control
