Product Overview

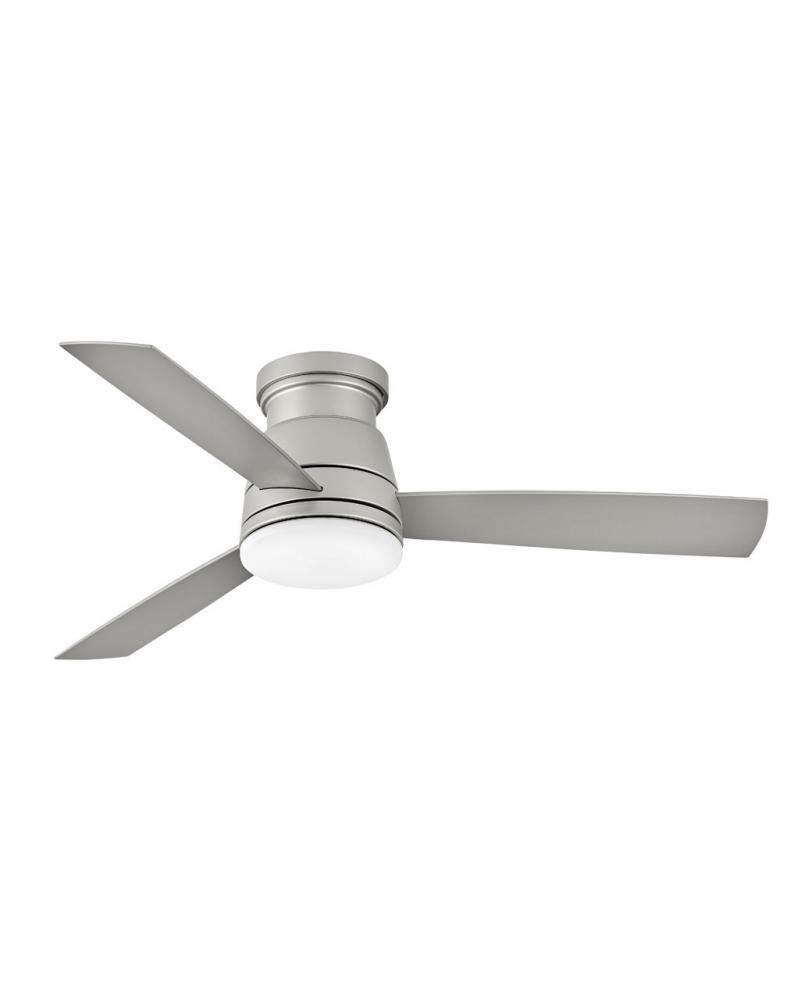

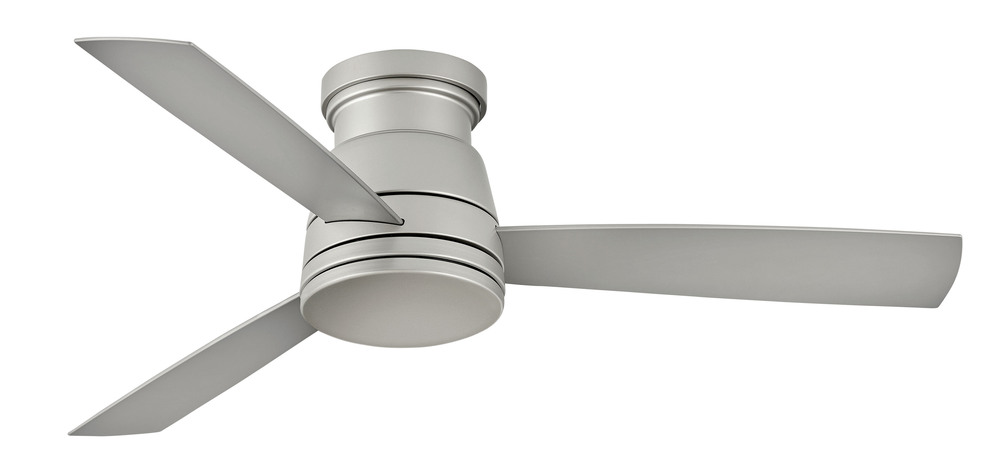

Trey features a sleek flush mount design that packs a powerful punch. Its transitional style comes equipped with robust blades that seamlessly pair performance and precision. Trey is offered in versatile Brushed Nickel, Metallic Matte Bronze and Matte White finish options, and its integrated LED lighting and DC motor technology deliver excellent energy efficiency. A timeless etched opal light kit completes the look for a refined appearance. Trey is so versatile; it can be used for both indoor and outdoor spaces. Blades are included with every fan.

Energy Information at High Speed

Airflow:

4827.00 Cubic Feet per Minute

Electricity Rate:

24.20 Watts (excluded lights)

Airflow Efficiency:

7.00 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Exterior

Fans

Subcategory:

Exterior Fans

Outdoor Fans

Finish:

Nickel

Style:

Transitional

Option:

Title 24

Wet Rated

LED

Prop 65

Voltage:

100-120

Lumens:

1101-1600

Number of Blades:

3 Blades

Kelvin:

2501-3000

Location Rating:

Wet Rated

Refinement Options

Category:

Fan

Finish:

Brushed Nickel

Style:

Transitional

Option:

Prop 65

Title 24

Wet Rated

Family:

TREY

Glass:

Etched Opal

Voltage:

120

Air Flow CFM:

200.00

4827.00

Air Flow Efficiency:

7.00

Amperage:

0.33

Blade Finish:

Silver

Blade Pitch:

20

Blades Included:

Yes

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

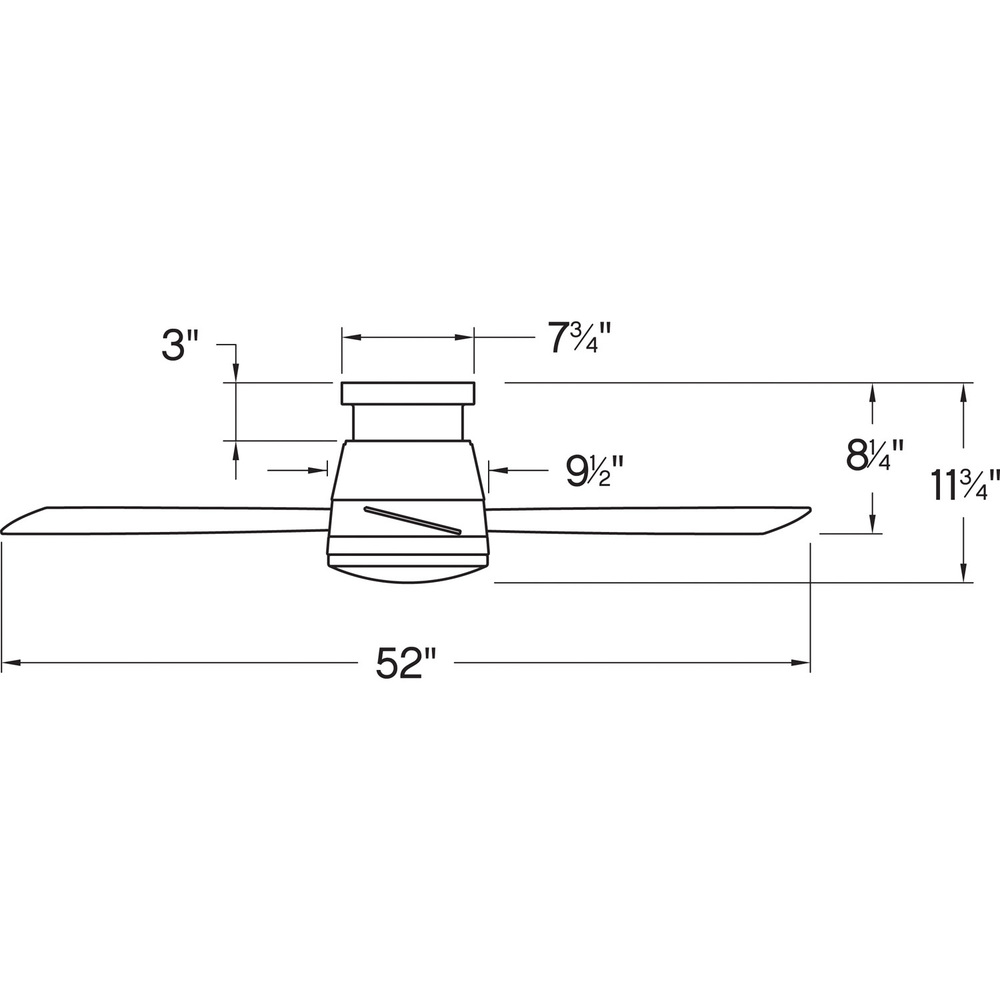

Canopy:

7.75 Diameter

Electricity Used:

24.20

Introduction Date:

01-01-2020

Kelvin:

3000

Length:

52.00

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Aluminum

Motor Fan Speed:

6 Speed

Motor Size:

153 X 10

Motor Type:

DC

Ship Carton Height:

12.50

Ship Carton Length:

26.00

Ship Carton Width:

12.00

Ship Weight:

26.50

Vendor Ship Method:

Parcel

Weight:

24.50

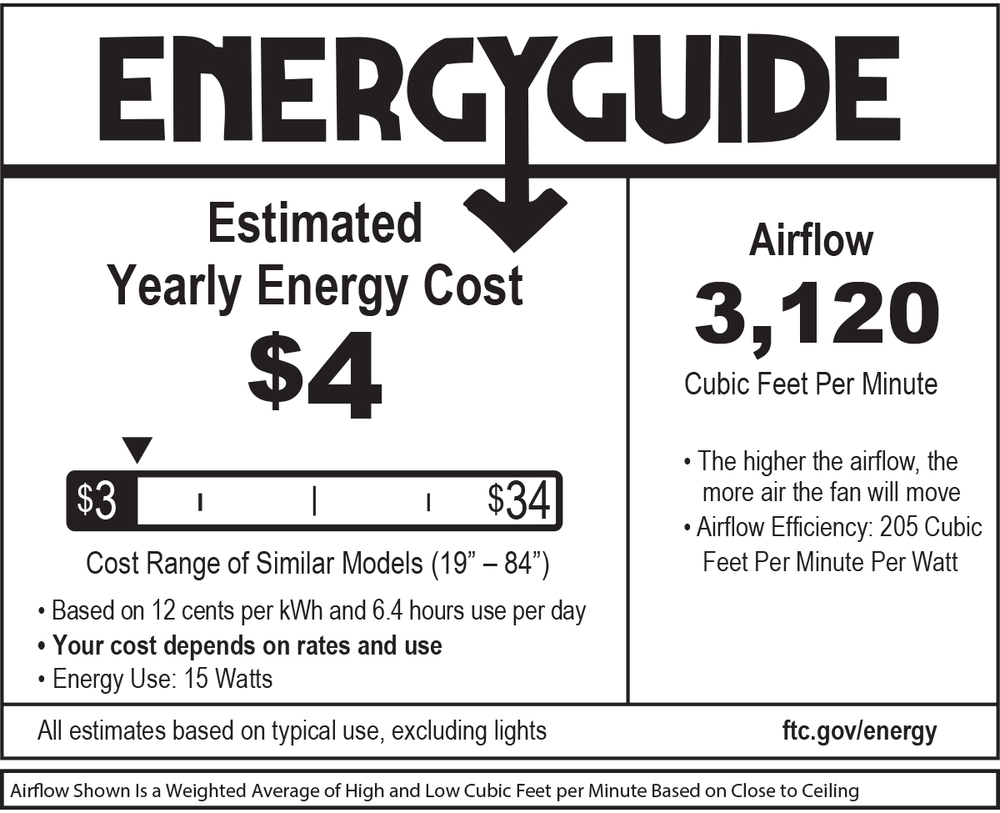

Air Flow Average:

205.00

3120.00

Air Flow Efficiency Average:

4.00

AMPS Average:

0.19

Blade Material:

Composite

Blade Options Available:

No

Blade Sweep:

52

Blades Reversible:

No

Bulb CRI:

90

Bulbs Included:

Yes

Ceiling To Blade Height:

8.25

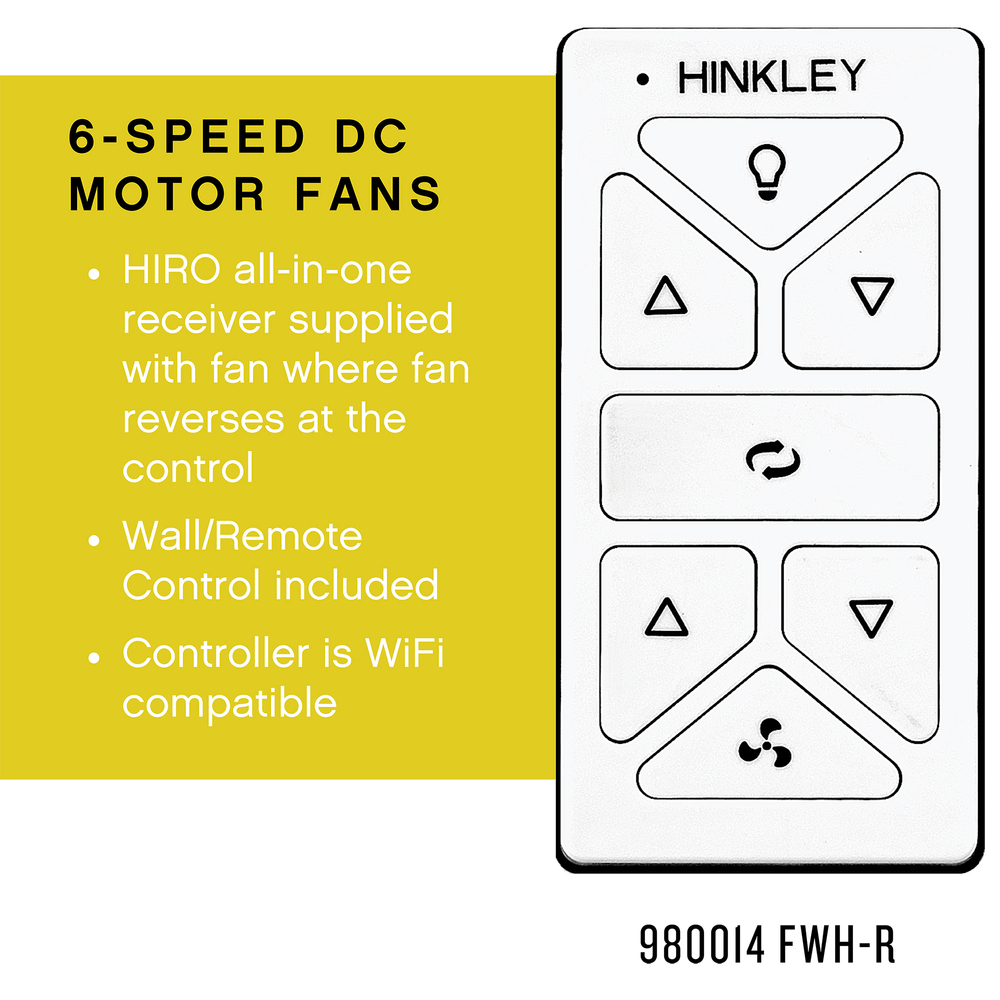

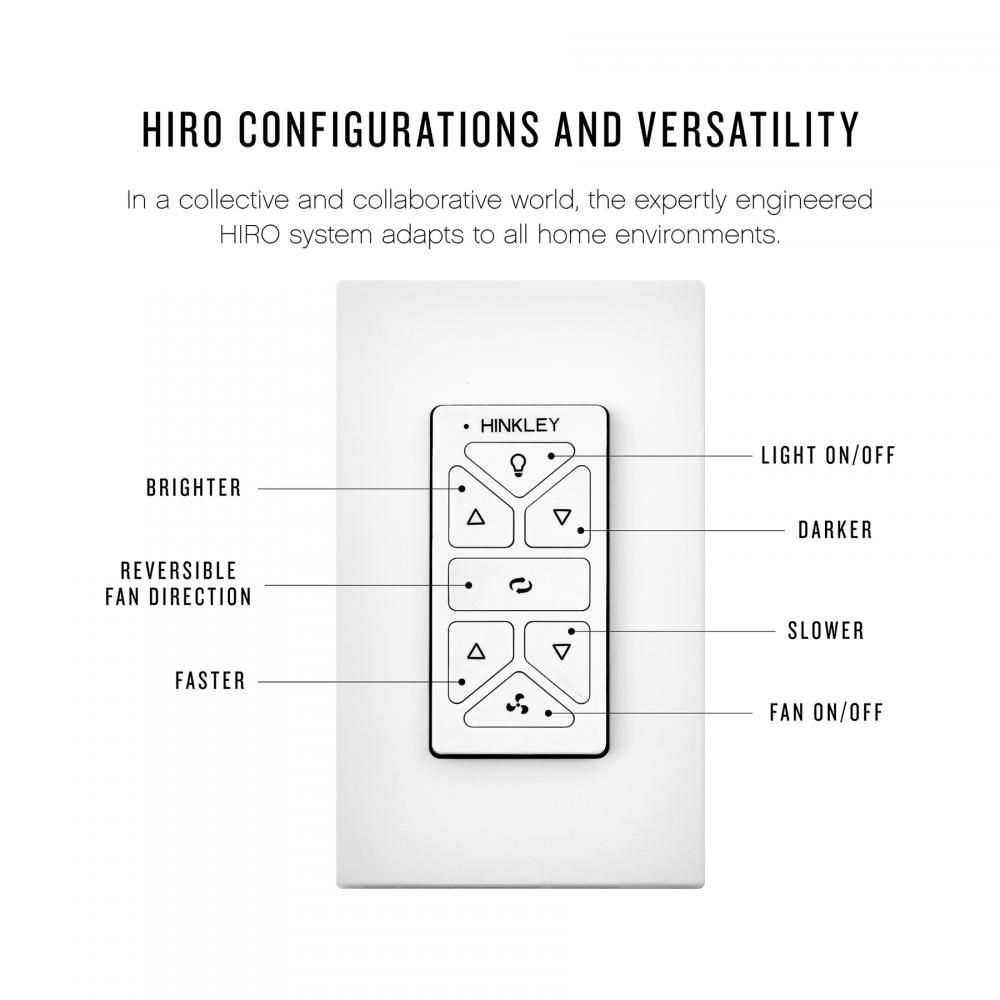

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

CHINA

Dual Mount:

No

Energy Used Average:

15.00

F B Included:

Fan Control included, 6 Spd HIRO:R

F B Mounting:

FAN: 7ft from floor

Fan Control Included:

Yes

Fan Control Part Number:

980014FWH-R

Incandescent Equivlancy:

1 x 100w

Install Sloped Ceiling:

No

Light Kit Adaptable:

No

Light Kit Included Removeable:

No

Number of Blades:

3

Operating Frequency:

60

Optional Items:

932027FBN

Optional Light Kit Cover:

932027FBN

PROP 65:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Average:

108.00

RPMS High:

169.00

Safety Rating:

C-US Wet Rated

UL

Single Power Switch:

Yes

Title 24:

Yes

Wet Rated:

Yes

WIFI Control Included:

Yes

WIFI Control Optional:

No
