Product Overview

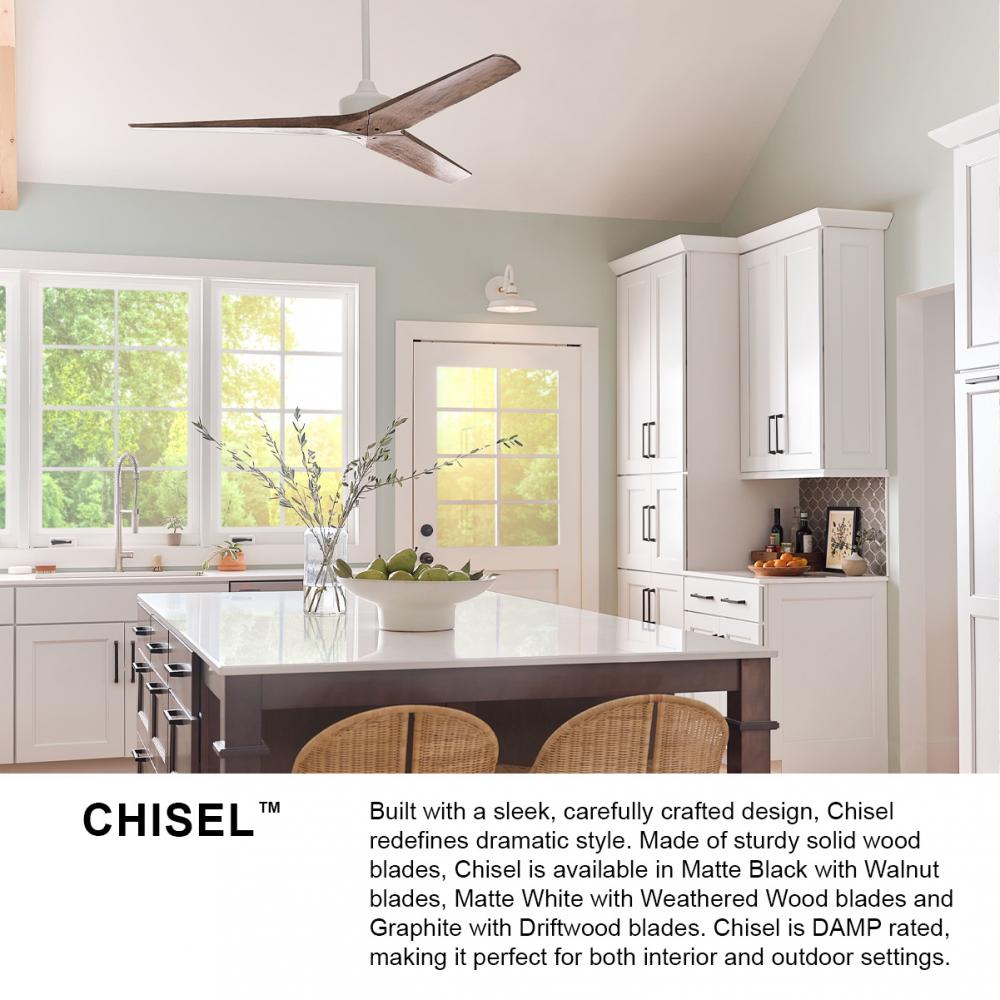

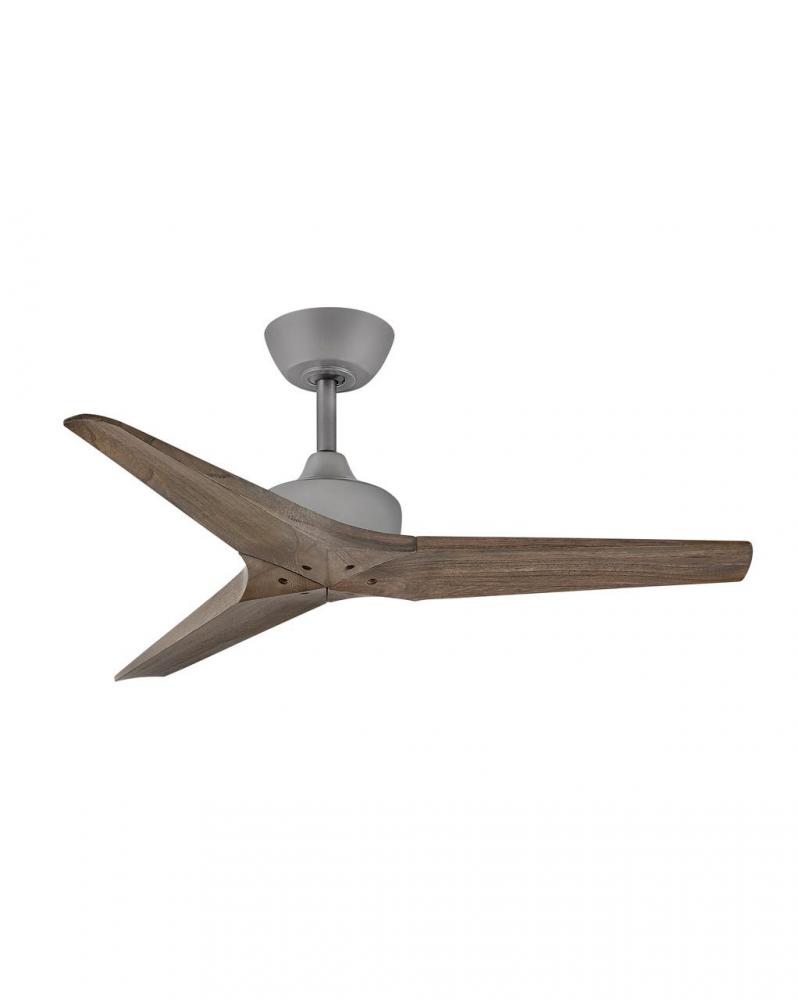

Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy solid wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings. Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

Energy Information at High Speed

Airflow:

5032.00 Cubic Feet per Minute

Electricity Rate:

33.30 Watts (excluded lights)

Airflow Efficiency:

9.00 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

Gray

Miscellaneous

Style:

Modern

Option:

Title 24

Damp Rated

Prop 65

Voltage:

100-120

Number of Blades:

3 Blades

Location Rating:

Damp Rated

Refinement Options

Category:

Fan

Finish:

Graphite

Style:

Modern

Option:

Damp Rated

Prop 65

Family:

Chisel

Voltage:

120

Air Flow CFM:

151.00

5032.00

Air Flow Efficiency:

9.00

Amperage:

0.36

Blade Finish:

Driftwood

Blade Pitch:

14

Blades Included:

Yes

Bulb Dimmable:

Does Not Apply

Canopy:

6 Diameter

Electricity Used:

33.30

Introduction Date:

01-01-2021

Length:

44.00

Material:

Steel

Motor Fan Speed:

6 Speed

Motor Size:

165 X 21

Motor Type:

DC

Ship Carton Height:

7.09

Ship Carton Length:

24.21

Ship Carton Width:

14.96

Ship Weight:

15.66

Vendor Ship Method:

Parcel

Weight:

13.45

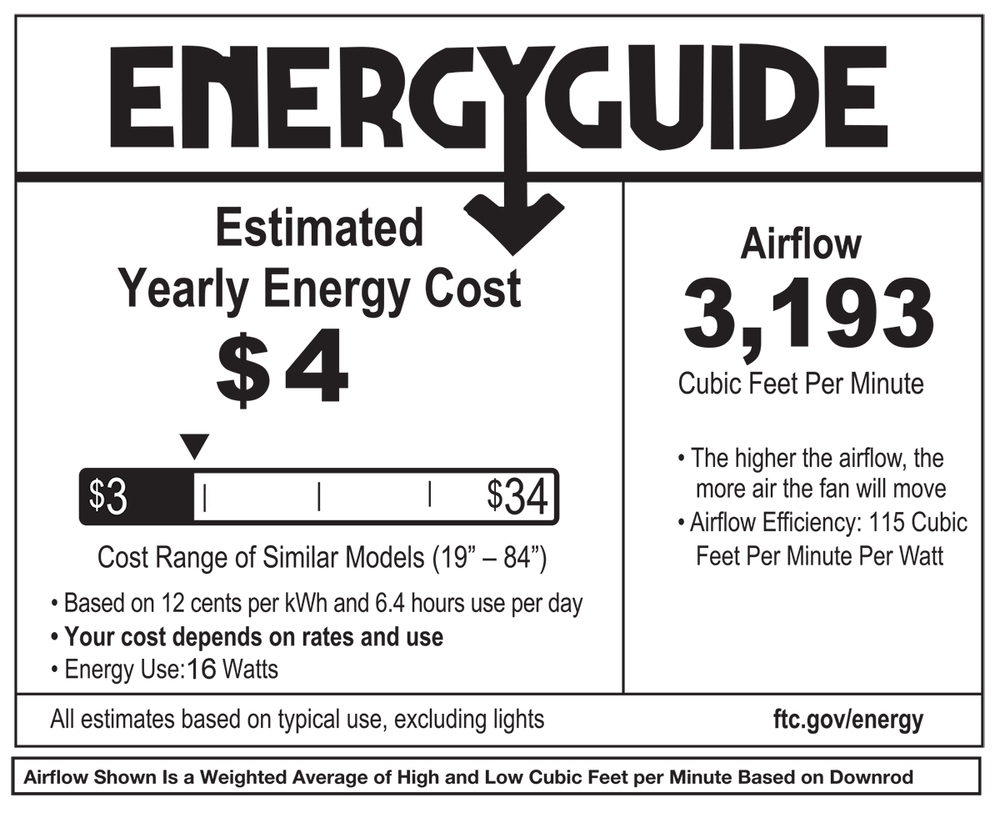

Air Flow Average:

200.00

3193.00

Air Flow Efficiency Average:

4.00

AMPS Average:

0.21

Blade Material:

Wood

Blade Options Available:

No

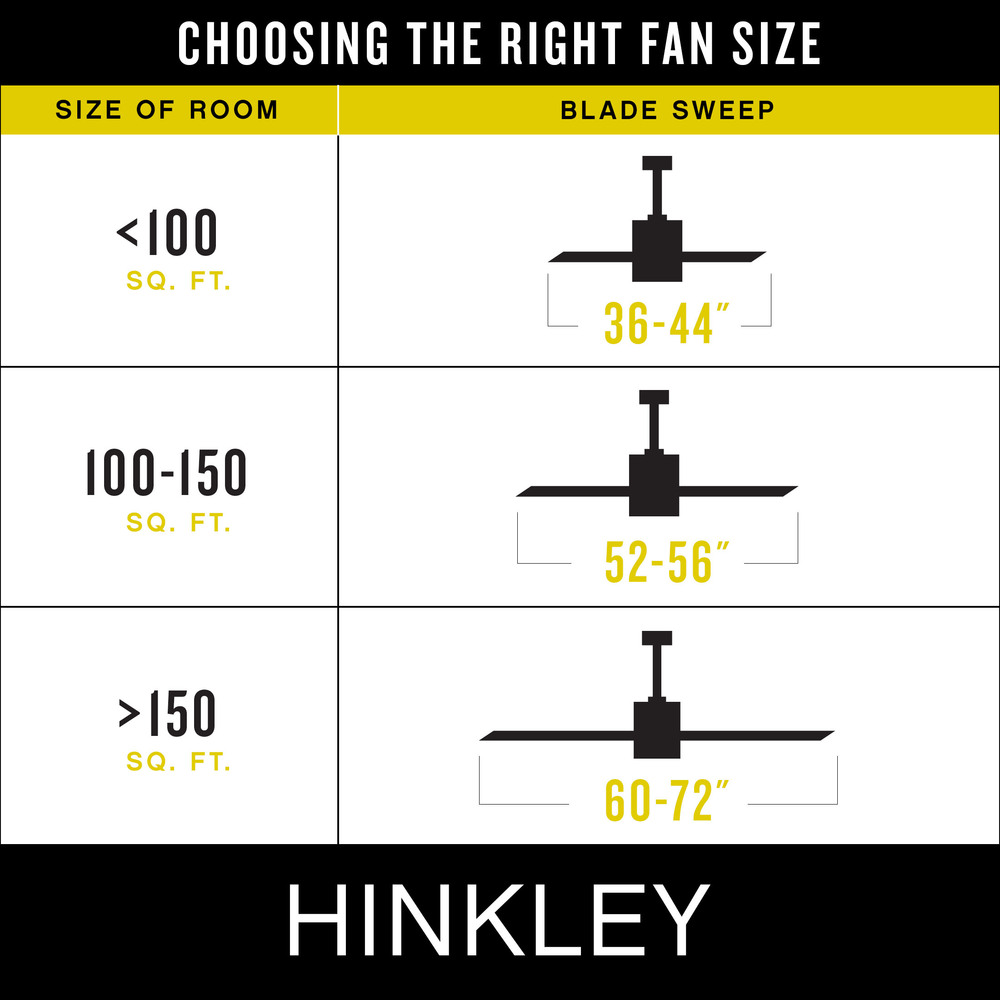

Blade Sweep:

44

Blades Reversible:

No

Bulbs Included:

No

Canopy Depth:

2.5

Ceiling To Blade Height:

12

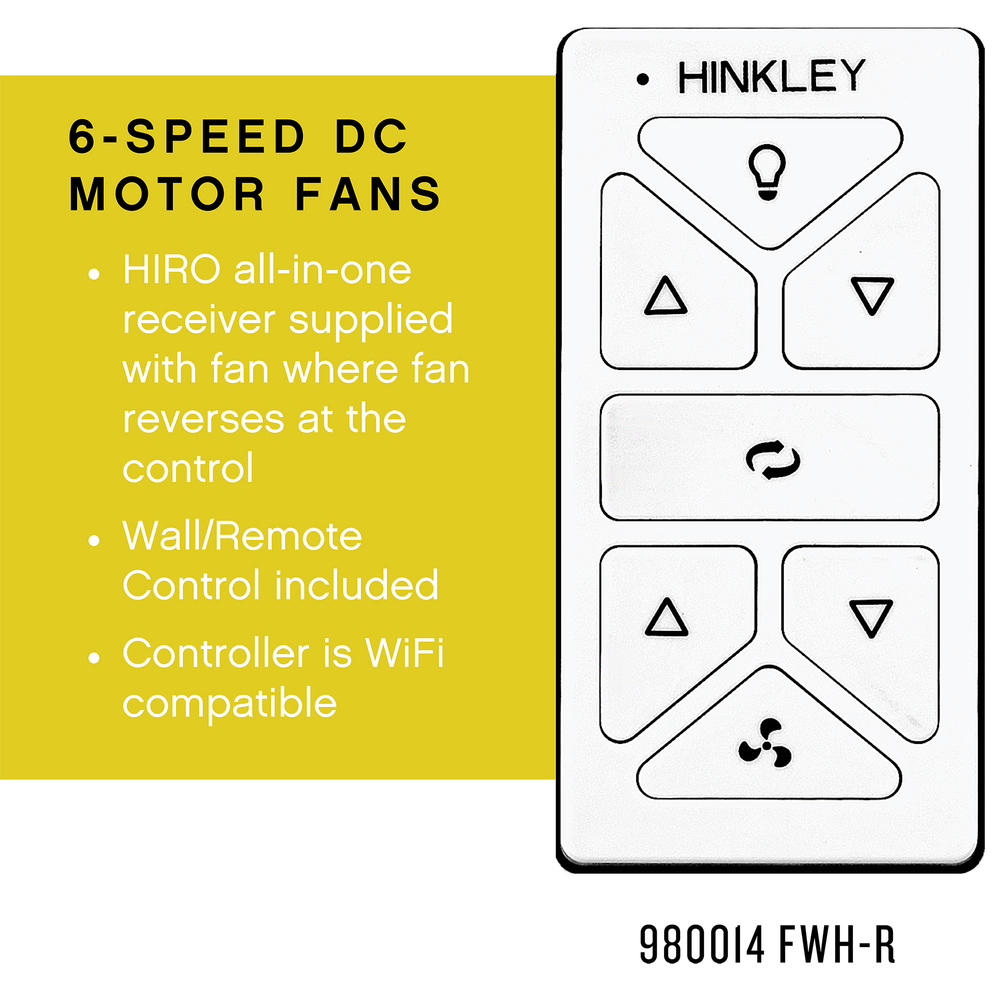

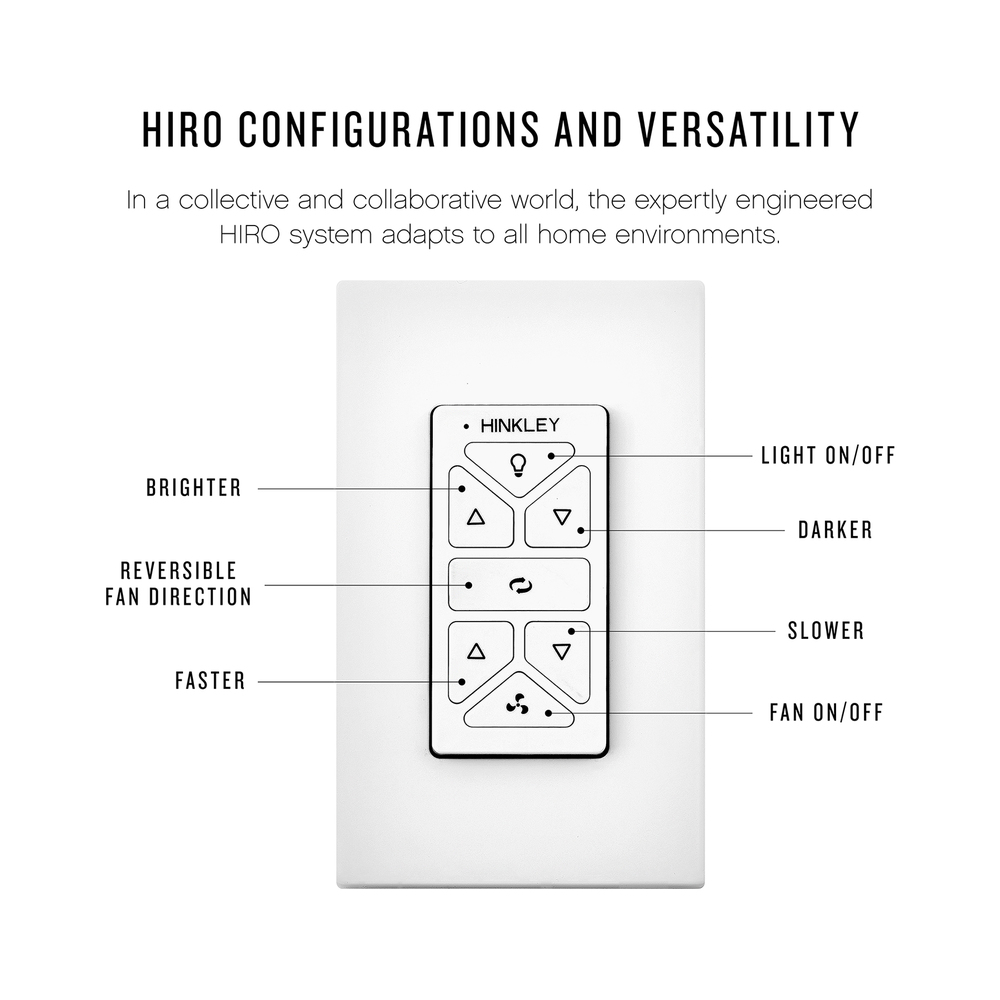

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

Taiwan

Damp Rated:

Yes

Dual Mount:

No

Energy Used Average:

16.00

F B Included:

Fan Control included, 6 Spd HIRO:R

F B Mounting:

FAN: 6 Rod Included, FAN: 7ft from floor, FAN: Install Slope Ceiling

Fan Control Included:

Yes

Fan Control Part Number:

980014FWH-R

Install Sloped Ceiling:

Yes

Light Kit Adaptable:

No

Light Kit Included Removeable:

No

Number of Blades:

3

Operating Frequency:

60

PROP 65:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Average:

170.00

RPMS High:

289.00

Safety Rating:

C-US Damp Rated

ETL

Single Power Switch:

Yes

Slope Degree:

20

Title 24:

No

WIFI Control Included:

Yes

WIFI Control Optional:

No
